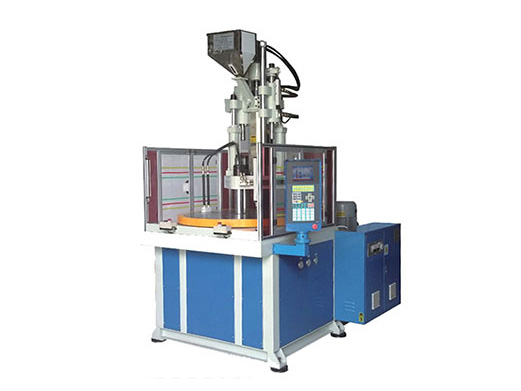

V120R2-SP立式高速圓盤注塑機

立式高速圓盤標準注塑機是一種高效、精密的塑料成型設備，其特點主要包括以下幾個方面：

1. 注射裝置與合模裝置在同一垂直中心線上，這種設計使得注塑機的占地面積較小，約為臥式注塑機的一半，從而提高了空間利用效率。

2. 易于實現嵌件成型，由于模具表面朝上，嵌件放置定位容易，可以實現全自動嵌件成型，提高了生產效率。

3. 模具重量由水平模板支撐，避免了因模具重力引起的前倒現象，有利于保持機械和模具的精度。

4. 通過簡單的機械手可取出各個塑件型腔，有利于精密成型，同時便于配置各類自動化裝置，適應復雜、精巧產品的自動成型。

5. 拉帶輸送裝置易于實現串過模具中間安裝，便于成型自動化生產。

6. 易于保證模具內樹脂流動性及模具溫度分布的一致性，配備有旋轉臺面、移動臺面及傾斜臺面等形式，容易實現嵌件成型、模內組合成型。

7. 小批量試生產時，模具構造簡單成本低，且便于卸裝，經受了多次地震的考驗，立式注塑機由于重心低，相對臥式注塑機抗震性更好。

8. 高速注射，能選擇高速、高壓進行注射，采用儲能器，最大射速可達380mm/sec，適合肉厚0.2mm以下超薄成型品的最佳最穩定的選擇。

9. 精密成型，成型精密，生產周期短，適合大射膠量生產，適合肉厚0.2mm以下超薄成型品的最佳最穩定的選擇。

10. 穩定耐用，全采進口油壓零件及電控，反應快、精度高，穩定耐用。

綜上所述，立式高速圓盤標準注塑機具有高效率、高精度、節能環保等特點，適用于各種塑料產品的成型生產。

Vertical high speed disc standard injection molding machine is a kind of high efficiency and precision plastic molding equipment, its features mainly include the following aspects:

1. the injection device and the closing device are on the same vertical centerline, this design makes the footprint of the injection molding machine smaller, about half of that of the horizontal injection molding machine, thus improving the efficiency of space utilization.

2. It is easy to realize insert molding. Since the mold surface faces upwards, it is easy to place and position the inserts, and fully automatic insert molding can be realized, which improves the production efficiency.

3. the weight of the mold is supported by the horizontal template, which avoids the phenomenon of forward fall caused by the gravity of the mold, and helps to maintain the precision of the machine and the mold.

4. Each cavity can be taken out by simple manipulator, which is conducive to precision molding, and at the same time, it is easy to configure all kinds of automation devices to adapt to automatic molding of complex and delicate products.

5. The belt conveyor is easy to be installed in the middle of the mold, which is convenient for the automatic production of molding.

6. It is easy to ensure the consistency of resin fluidity and mold temperature distribution in the mold, equipped with rotating table, moving table and tilting table, etc., which is easy to realize insert molding and in-mold combination molding.

7. small batch trial production, the mold structure is simple and low cost, and easy to unload, withstood the test of many earthquakes, vertical injection molding machine due to the low center of gravity, relative to the horizontal injection molding machine seismic better.

8. High-speed injection, can choose high-speed, high-pressure injection, the use of energy storage device, the maximum injection speed of up to 380mm / sec, suitable for meat thickness of 0.2mm or less ultra-thin molded products the best and most stable choice.

9. Precision molding, precision molding, short production cycle, suitable for large injection volume production, suitable for meat thickness of 0.2mm or less ultra-thin molding products of the best and most stable choice.

10, stable and durable, all imported hydraulic parts and electronic control, fast response, high precision, stable and durable.

To sum up, vertical high-speed disc standard injection molding machine with high efficiency, high precision, energy saving and environmental protection features, suitable for a variety of plastic products molding production.
