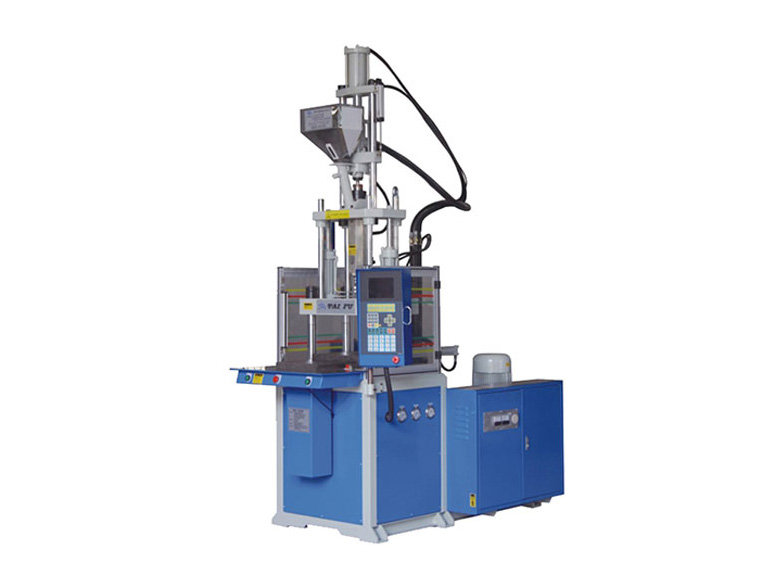

V55S-SP立式高速單滑板注塑機

立式高速單滑板注塑機是一種高效的塑料成型設備，具有以下特點：

1. 立式無柱鎖模：與臥式注塑機相比，立式注塑機沒有柱子，模具是沿上下方向開閉，占地面積較小，約為臥式機的一半左右，但生產性能約為臥式機的兩倍。

2. 高速注射：立式高速單滑板注塑機能夠在射膠時選擇高速、高壓進行注射，最大射速可達380mm/sec，適合薄壁產品的成型。

3. 高精度：該機型采用先進的微電腦控制，動力系統利用油壓傳動，塑膠在料管內經過電熱圈加熱及料管螺桿旋轉產生剪切進行預塑熔融注射入型腔，經冷卻，開模，頂出動作即得出產品，本機可進行手動，半自動及全自動生產。

4. 易于嵌件成型：由于模具表面朝上，嵌件放入定位容易，采用下模板固定、上模板可動的機種，拉帶輸送裝置與機械手相組合的話，可容易實現全自動嵌件成型。

5. 模具保護：模具的重量由水平模板支撐作上下開閉動作，不會發生類似臥式機的由于模具重力引起的前倒，使得模板無法開閉的現象。有利于持久性保持機械和模具的精度。

6. 自動化生產：通過簡單的機械手可取出各個塑件型腔，有利于精密成型，一般鎖模裝置周圍為開放式，容易配置各類自動化裝置，適應于復雜、精巧產品的自動成型。

7. 節能高效：立式注塑機采用高效的液壓系統和先進的電氣控制系統，能夠?qū)崿F(xiàn)能量的高效利用，減少浪費。

綜上所述，立式高速單滑板注塑機具有高速度、高精度、高效率和高自動化的特點，適合生產各種精密塑料零件，尤其是薄壁和復雜的產品。

Vertical high speed single slide injection molding machine is a kind of high efficient plastic molding equipment with the following features:

1. Vertical column-free mold locking: Compared with horizontal injection molding machine, vertical injection molding machine has no column, the mold is opened and closed along the up and down direction, occupies a smaller area, about half of the horizontal machine, but the production performance is about twice as much as the horizontal machine.

2. High-speed injection: Vertical high-speed single-slide injection molding machine is able to select high-speed, high-pressure injection when injecting glue, the maximum injection speed of up to 380mm/sec, suitable for thin-walled products molding.

3. high precision: the model adopts advanced microcomputer control, power system using hydraulic transmission, plastic in the material tube through the electric heating ring heating and material tube screw rotation to produce shear pre-molding melt injection into the cavity, after cooling, mold opening, ejector action that is the result of the product, the machine can be manually, semi-automatic and fully automatic production.

4. Easy insert molding: Because the surface of the mold is facing up, it is easy to put the insert into the positioning, using the lower template fixed, the upper template can move the type of machine, the combination of the belt conveyor and the manipulator, it is easy to realize the full-automatic insert molding.

5. Mold protection: the weight of the mold is supported by the horizontal template for up and down opening and closing action, it will not happen similar to the horizontal machine due to the gravity of the mold caused by the front fall, making the template can not be opened and closed phenomenon. This helps to maintain the precision of the machine and the mold in a durable way.

6. automated production: through a simple manipulator can take out the cavity of each plastic part, which is conducive to precision molding, the general clamping device around the open, easy to configure all kinds of automation devices, adapted to complex, delicate products, automatic molding.

7. Energy saving and high efficiency: vertical injection molding machine adopts high efficiency hydraulic system and advanced electric control system, which can realize the efficient use of energy and reduce waste.

To sum up, the vertical high-speed single-slide injection molding machine is characterized by high speed, high precision, high efficiency and high automation, which is suitable for producing all kinds of precision plastic parts, especially thin-walled and complex products.
